X Series Truck/Jeep SUV Winch 8000 Lbs

X Series Truck/Jeep SUV Winch 8000 Lbs

    Packaging: EXPORT CARTON
    Transportation: Ocean,Air
    Port: SHANGHAI,NINGBO

Basic Info

Model No.: EWX8000U

Product Description

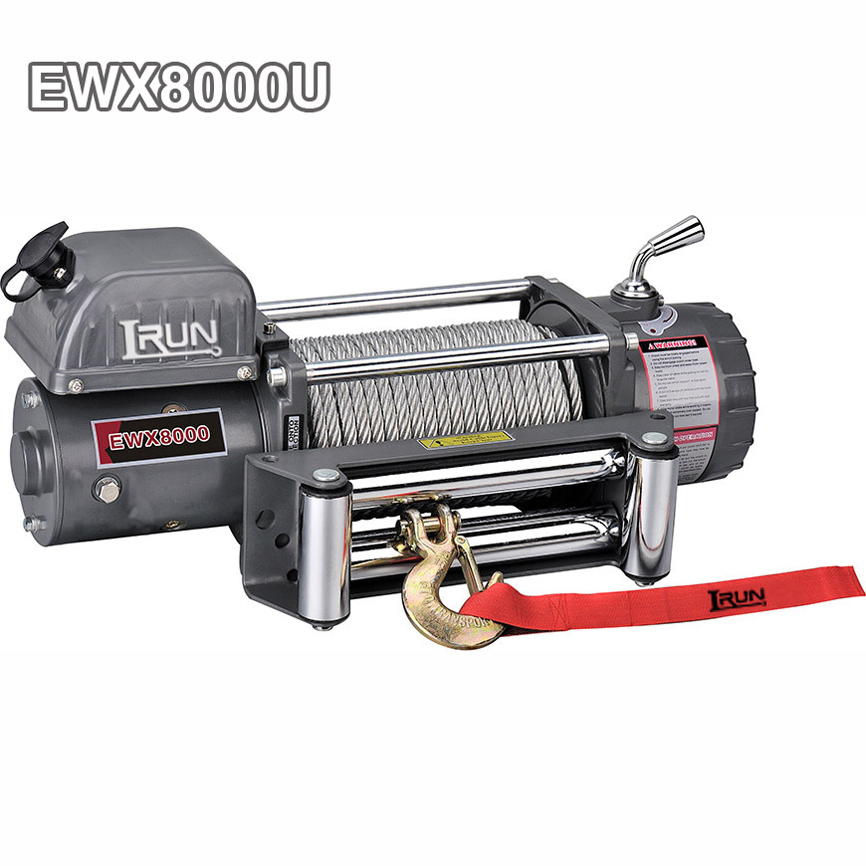

X series Truck/Jeep SUV Winch 8000 Lbs

EWX8000U
Truck/Jeep Suv Electric Winch 8000 lbs installed A control box on the winch motor. It’s a ideal choose of 8000 pounds winch with high performance requirment. Because It belongs to our Jeep Winch EWX Series. EWX Series which features perfect efficiency ,stable pulling and compact design. This Series winches have ourself patent design three stage planetary gear reducer making winches be of extreme transmission efficiency and reliable safety operation.

Features:
1. Full steel reducer gear
2. Patent three stage planetary gear reducer
3. Free spooling clutch
4. Automatic screw cone braking action
5. Short Series Wound Motor
6. DC 12V or DC 24V Power drive optional
7. Remote control through control box and switch
8. Wireless remote control available F type fixed in control box
9. SWR tensioner available

EWX8000U

SPECIFICATION
Rated line pull 8000 lbs (3629kgs)
Motor:Series Wound 12V:Input: 4.3kW / 5.8hp; Output: 2.0kW / 2.7hp
24V:Input: 5.5kW / 7.4hp; Output: 2.8kW / 3.8hp
Gear reduction ratio 230:1
Cable (Dia.× L) Ø21/64″×95 ‘ (Ø8.3mm×29m)
Drum size (Dia.× L) Ø2.48 “×8.8 ” (Ø63mm×223mm)
Mounting bolt pattern 10 “×4.5 ” (254mm×114.3 mm) 4-M10
Pull Speed Amperes Volts First layer Line Pull And Rope Capacity In Layer
Line Pull

Ibs (kgs)

Line Speed

Ft/min (M/min)

Current

A

Layer

of cable

Rated line pull

lbs(kgs)

Total Rope On Drum

ft (m)

12V DC 24V DC 12V DC 24V DC 1 2000(907) 6.6(2.0)
0 9.5(2.9) 9.8(3.0) 15 12 2 1630(739) 14.1(4.3)
500(227) 8.2(2.5) 8.9(2.7) 60 40 3 1380(626) 22.3(6.8)
1500(680) 5.6(1.7) 7.5(2.3) 115 60 4 1190(540) 31.2(9.5)
2000(907) 3.6(1.1) 6.2(1.9) 145 80 5 1050(476) 41.0(12.5)
6 940(426) 49.2(15.0)
ITEM EWX8000U EWX8000S EWX8000F
Overall dimensions 21.3″×6.3″×10.0″ 21.3″×6.3″×11.1″ 21.3″×6.3″×9.9″
(L×W×H) 540mm×160mm×254mm 540mm×160mm×283mm 540mm×160mm×251mm
Net weight (Ibs) 71.9 77.3 82.1
(kgs) 32.6 35.1 37.2

Overall Dimensions:21.3″ x 6.3″ x 10.0″
(L x W x H) 540mm x 160mm x 254mm

Net Weight:32.6 KGS

EWX8000U
