Galvo Head Co2 Rf Laser Marking Machine

Features:

1.Adopt quality parts ,RF metal CO2 Laser Tube.

2.NO maintenance laser source.

3.High speed galvo scanner.

4.Easy Operate without route maintenance.

5.Higher precision,faster speed.

6.High quality laser beam.

7.Low consumption.

8.Long lifetime.More than 100000 working life

Specification:

Model	LP-10/30/50/100
Laser Power	40W/60W/80W/100W
Laser Wavelength	10.64um
Q-frequency	20KHz~100KHz
Divergence	0.3mard
Marking Range	100*100mm/200*200mm/300*300mm
Minimum Line Width	0.02mm
Minimum Character	0.15mm
Marking Depth	0 ~0.5mm
Engraving Line Speed	≤7000mm/s
Repeatability Accuracy	±0.001mm
Beam Quality	M2:1.2~1.8

Marking Format	Graphics, Text, Bar Codes, Two-dimensional Code, Automatically Marking the Date,Batch number,Serial number,Frequency,etc.
Graphic Format Supported	bmp,jpg,gif,tga,png,tif,ai,dxf,dst,plt,etc.
Working Voltage	220V±10%/50Hz/4A

Applied Materials:

Paper, plastics, wood, glass, painted pottery,

non-metallic materials and oxidation plating paint materials on the surface of metal.

Applied Industries:

Food, beverage, wine, mineral water, pharmaceutical, chemical products, tobacco, plastic & rubber

product accessories, building materials and other manufacturing products or packaging.

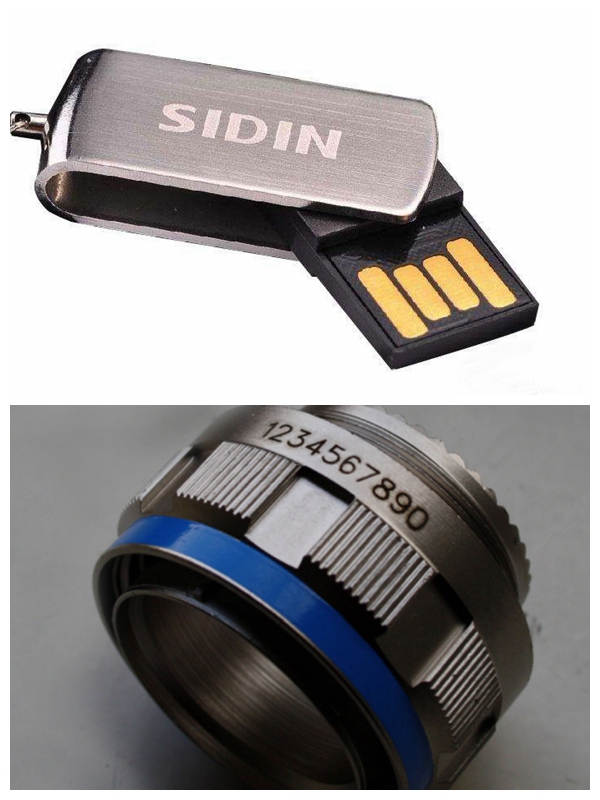

Showcase:

Company information

Leapion in laser machine business since 2007, we are a global manufacturing company producing Laser engravers,laser markers,CNC Router,UV inkjet printers for various applications such as signage,advertising, Woodworking furniture.

Leapion Laser is becoming the word's TOP in the laser engraving, cutting and marking industry. We are innovators. We are problem solvers. We are committed to designing and manufacturing the highest-quality laser systems and cnc router machine.

Leapion original concept was to bring CO2 laser engraving systems to both commercial customers, small business owners and the home craftsman. Over the years we developed larger, more powerful CO2 laser systems and fiber laser cutting and Marking Machine.
