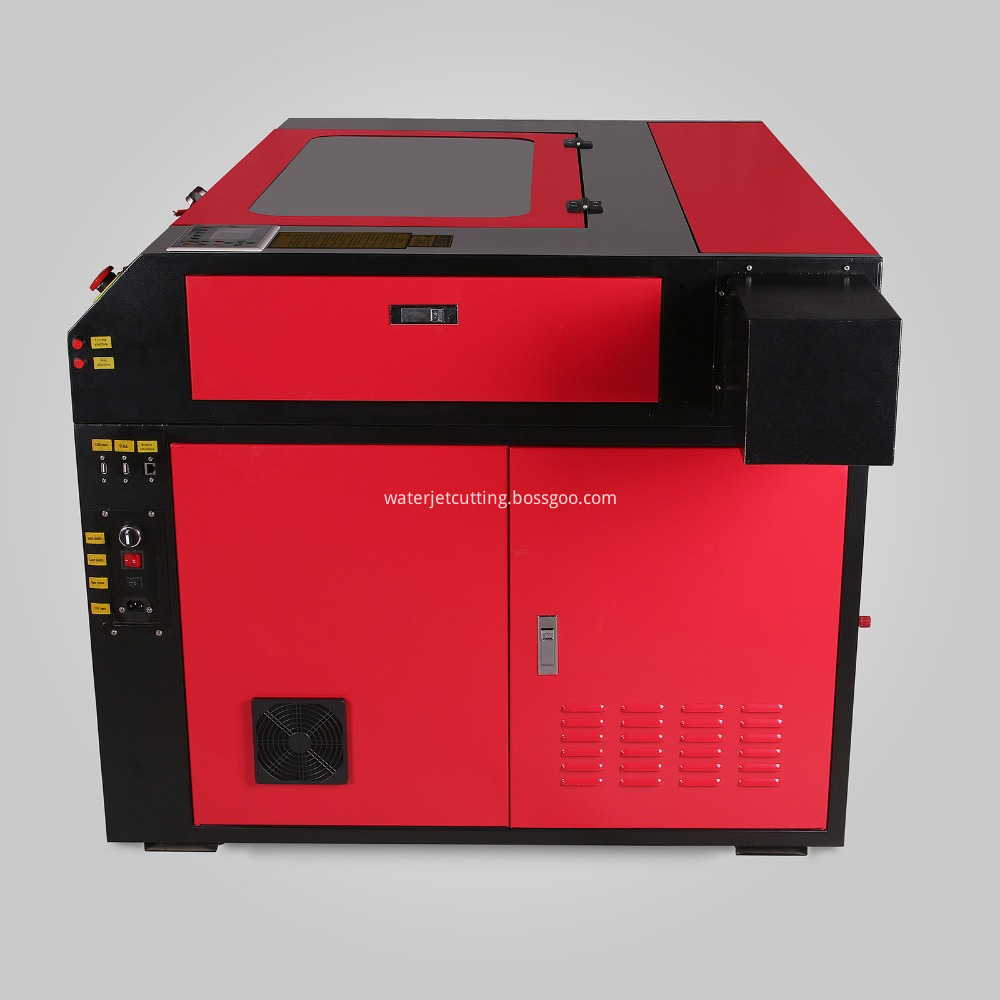

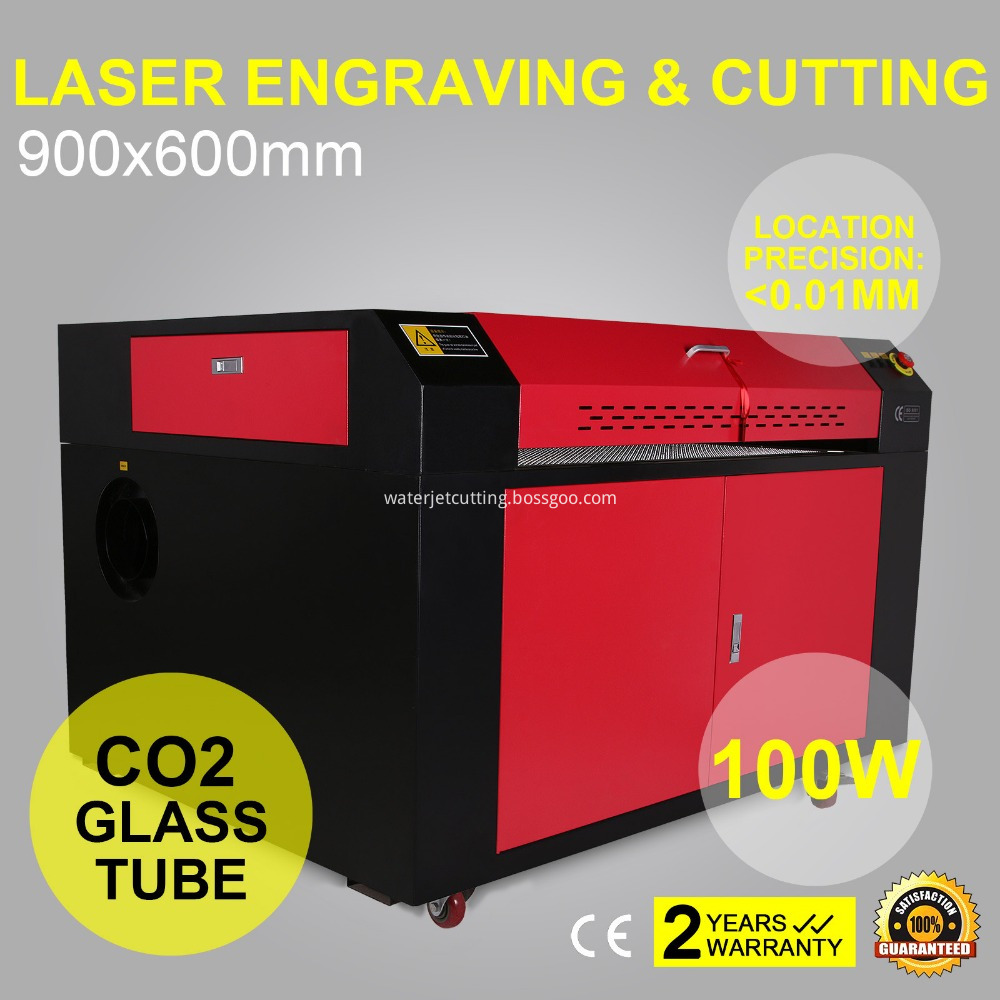

100W CO2 Laser Engraving Machine 900X600MM USB

  • 100W CO2 Laser Engraving Machine 900X600MM USB
  • 100W CO2 Laser Engraving Machine 900X600MM USB
  • 100W CO2 Laser Engraving Machine 900X600MM USB
  • 100W CO2 Laser Engraving Machine 900X600MM USB

100W CO2 Laser Engraving Machine 900X600MM USB

    Payment Type: L/C,T/T,Paypal,Western Union
    Terms of Trade: FOB,CFR,CIF,EXW
    Min. Order: 1 Set/Sets
    Delivery Time: 7-15 Days
    Packaging: wooden case
    Productivity: 20000pcs/year
    Brand: QFXF
    Transportation: Ocean
    Place of Origin: CHINA
    Supply Ability: 20000pcs/year
    Certificate: CE AND FDA CERTIFICATE
    Port: QINGDAO,SHANGHAI

Basic Info

Model No.: L-100W

Product Description

100W CO2 LASER ENGRAVERING MACHINE 900X600MM USB CE AND FDA CERTIFICATE


Introduction

New Laser Engraving and Cutting Machine. The machine is a kind of Laser Engraving Machine System equipped with CO2 Laser Tube, it is used to engrave on wood, bamboo, plexiglass, crystal, leather, rubber, marble, ceramics and glass and etc. It is most suitable and the preferred choice of equipments in industries such as advertisement, gifts, shoes,toys and etc. It supports multiple graphic formats, such as HPGL, BMP, GIF, JPG, JPEG, DXF, DST, AI and so on.
This machine is equipped with DSP Control System for RDdraw directly,also supports CorelDraw and Auto CAD and other advance software. It must connect with computer with USB cable when you change the settings of machine for the design files,you can transfer the file with USB memory stick to the machine, or can download it to the machine directly with USB cable from computer. Even on the same Job, you can do setting with different colour in the software and also can making holes.And it can the legs separate from the main body of the machine. The machine has doors which can be opened to accommodate larger materials.
Applicable Material:
Wood,bamboo,jade,marble,organic glass, crystal, plastic, garments, paper, leather, penelope, rubber, ceramic, glass, textile cutting, industrial prototyping, industrial marking, signmaking, medical part marking, aerospace, architectural modeling, specialty advertising, plastics fabricating, flexo, point of purchase, rubber stamps, picture framing, gift manufacturing, bar coding, engraving, gasket cutting, puzzles, cabinetry, awards & recognition, personalized pens, door pulls, cut scroll patterns, games & toys, finger joints, inlays & overlays, fraternity paddles, music boxes, light switch plates, jewelry boxes, parts marking, router templates, desk sets, scrap booking, photo albums, jewelry, crafts, Italian charms.
Applicable Industry:

Advertisement,arts and crafts, leather, toys, garments, model, building upholster, computerized embroidery and clipping,packaging and paper industry.

100w Co2 Laser Engraving Machine 900x600mm Usb100w Co2 Laser Engraving Machine 900x600mm Usb 4100w Co2 Laser Engraving Machine 900x600mm Usb 3

Features

  • FDA,CE Certification, ISO9001 Quality Certification.
  • Smooth and Precise Engraving and Cutting.
  • Output from RDdraw directly,also supports CoreDraw and Auto CAD .
  • Optimization of mechanical and electrical design.
  • More friendly control panel with Color Screen.
  • English, French, German, Italian, Spanish and more languages updating.
  • Separation of cutting up to 256 Colors.
  • One key to install, more convenient.
  • Use virtual array list and additional off-cut graph to realize the off-cut function.
  • Machines with feeding devices can realize the cyclical model of working-feeding-working.
  • USB Interface, U-Flash Disk Supported,Machine will read files from memory stick,you can work even without a PC.
  • Air Assist, Remove heat and combustible gases from the cutting surface and make the engraving and cutting projects a breeze.
  • Adopt advanced DSP digital control system, international standard laser power supply,integrated framework style
  • 2 years free warranty and life time free maintenance service.
Technical

  • Control system:DSP
  • Working size: 35.4"x23.6"(900mm x 600mm) with double side open door
  • Up and down work plate: 15.7" (400mm)
  • Laser Tube type: Co2 Glass sealed laser tube
  • Laser power: 100W
  • Driver type: Micro Stepping Motor
  • Max speed: 1000mm/s
  • Resolution: 1000 DPI
  • Location precision: 0.01mm
  • PC Interface: USB2.0 and USB Disk
  • Software: Auto Laser
  • Image form: HPGL, BMP, GIF, JPG, JPEG, DXF, DST, AI
  • Machine Dimension(L/W/H): 1500*1080*1100 (mm)
  • Package Dimension(L/W/H): 1590*1560*1310 (mm)
  • Package: Standard Wooden case for export
  • N.W.: 270KG
  • G.W.: 400KG

Friendly

  • Laser Engraving software Package(English Version)
  • User Manual (CD)
  • Water Pump
  • Air exhaust fan
  • Air Pump
  • Communication cable
  • 3 Reflect optics (installed in the machine)
  • 1 Focus optics (installed in the machine)
  • 1 Laser tube
